Semantic Graph Tab Reference

The Semantic Graph tab builds and explores a knowledge graph of your binary, capturing function relationships, security properties, and semantic information.

Purpose

The Semantic Graph tab creates a rich, queryable knowledge base of your binary that:

• Maps function call relationships
• Stores LLM-generated function summaries
• Detects security-relevant patterns
• Groups related functions into communities
• Enables security-focused taint analysis

This graph can be queried directly through the UI or used to enhance LLM responses in other tabs.

Sub-Tabs

The Semantic Graph tab contains four sub-tabs:

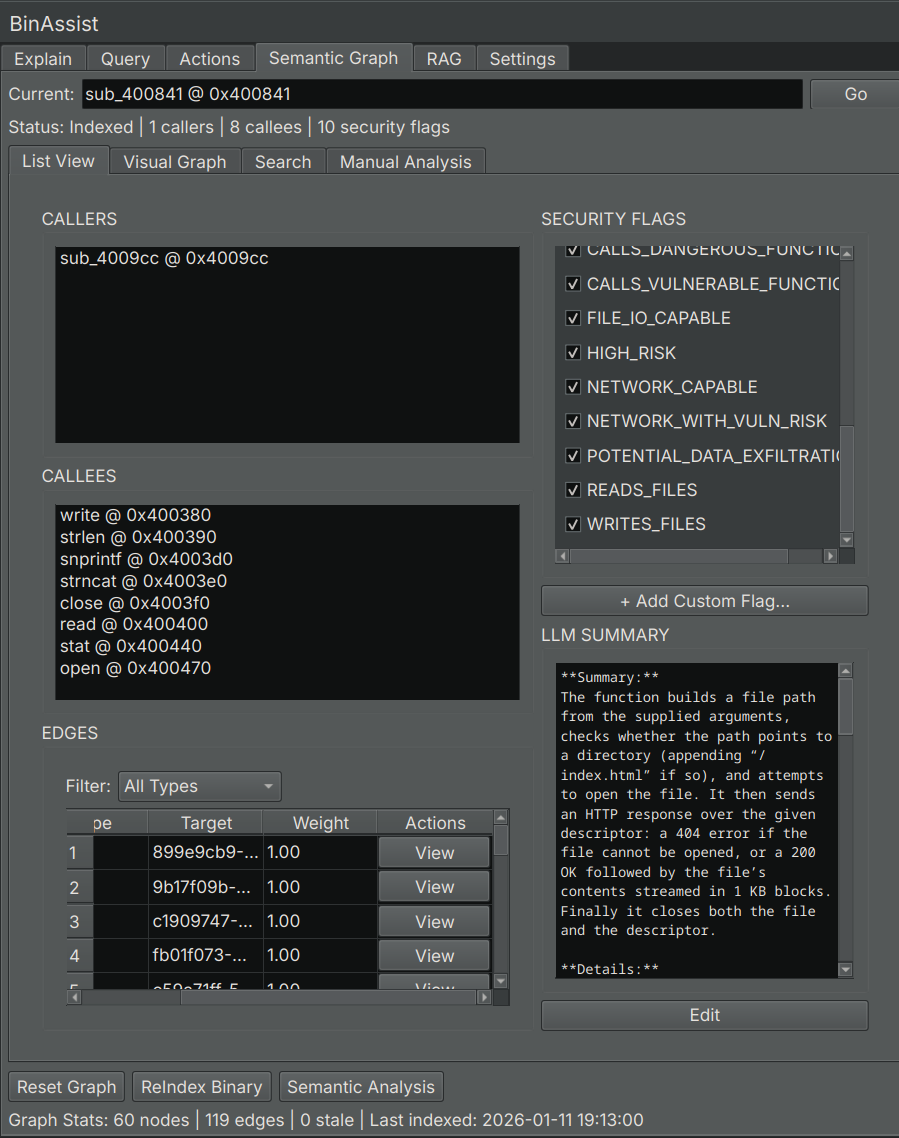

List View

Displays all indexed functions in a searchable table.

Column	Description
Address	Function start address
Name	Function name (or generated symbol)
Summary	LLM-generated description of function purpose
Flags	Security flags (network, file I/O, crypto, etc.)
Community	Detected function group/module

Click a row to:

• View the function's callers and callees
• Navigate to the function in Binary Ninja

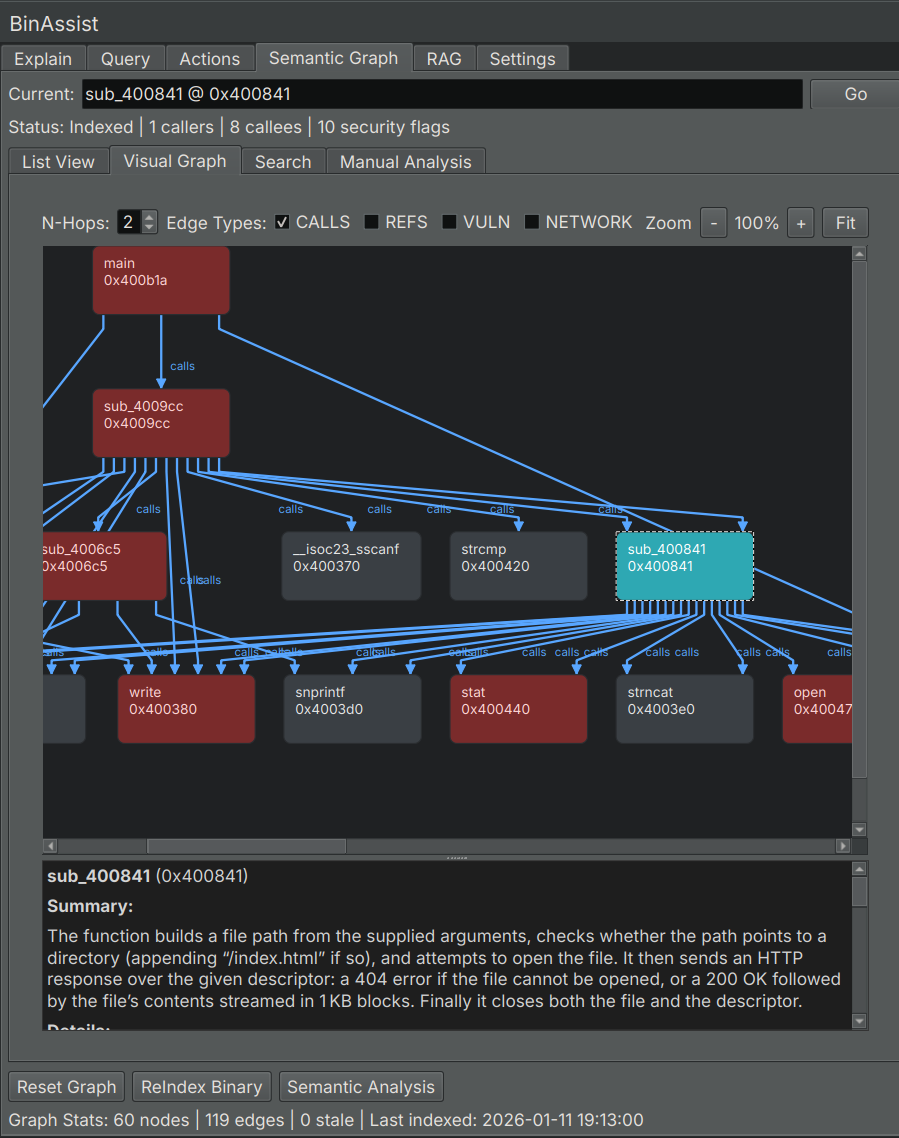

Visual Graph

Interactive visualization of function relationships.

• Nodes: Functions, sized by importance
• Edges: Call relationships
• Colors: Community membership or security flags

Navigation:

• Pan: Click and drag
• Zoom: Scroll wheel
• Select: Click a node to view details

Search

Full-text search across function names and summaries.

Enter keywords to find functions by:

• Function name
• Summary content
• Security-related terms

Results show matching functions with relevant excerpts highlighted.

Manual Analysis

Controls for running individual analysis pipelines.

Analysis Buttons

The Manual Analysis panel provides buttons to run specific analysis types:

Button	Description
ReIndex Binary	Extract all functions and build call graph
Semantic Analysis	Generate LLM summaries for all functions
Security Analysis	Run taint analysis for vulnerability detection
Community Detection	Group related functions using Label Propagation
Clear Graph	Delete the semantic graph and start fresh

ReIndex Binary

Extracts function information and builds the call relationship graph:

• Function addresses, names, and sizes
• Direct call relationships (CALLS edges)
• Import and export identification

This is the foundation for all other analyses.

Semantic Analysis

Uses the LLM to analyze each function and generate:

• Purpose summary
• Activity profile (what the function does)
• Security flags (network, file I/O, crypto, etc.)
• Risk assessment

This runs on all functions that don't already have summaries.

Security Analysis

Performs taint analysis to find potential vulnerabilities:

• Identifies source functions (user input, network receive, file read)
• Identifies sink functions (dangerous operations like strcpy, sprintf)
• Traces data flow paths from sources to sinks
• Creates TAINT_FLOWS_TO and VULNERABLE_VIA edges

Discovered paths are stored in the graph for later review.

Community Detection

Groups related functions using the Label Propagation algorithm:

• Analyzes call relationships
• Identifies clusters of related functions
• Labels communities by common purpose (e.g., "Network I/O", "Crypto", "File Operations")

Communities help you understand the binary's modular structure.

Graph Statistics

The bottom of the tab displays current graph statistics:

Statistic	Description
Functions	Number of indexed functions
Edges	Number of relationships (calls, taint flows)
Communities	Number of detected function groups

Using the Graph

With LLM Queries

When MCP is enabled in the Query tab, the LLM can query the semantic graph to:

• Find functions by purpose
• Trace call chains
• Identify security-relevant functions
• Explore community relationships

For Manual Analysis

Use the List View and Search to:

• Find functions matching criteria
• Review security flags
• Understand function purposes
• Navigate the binary systematically
