Query Tab Reference

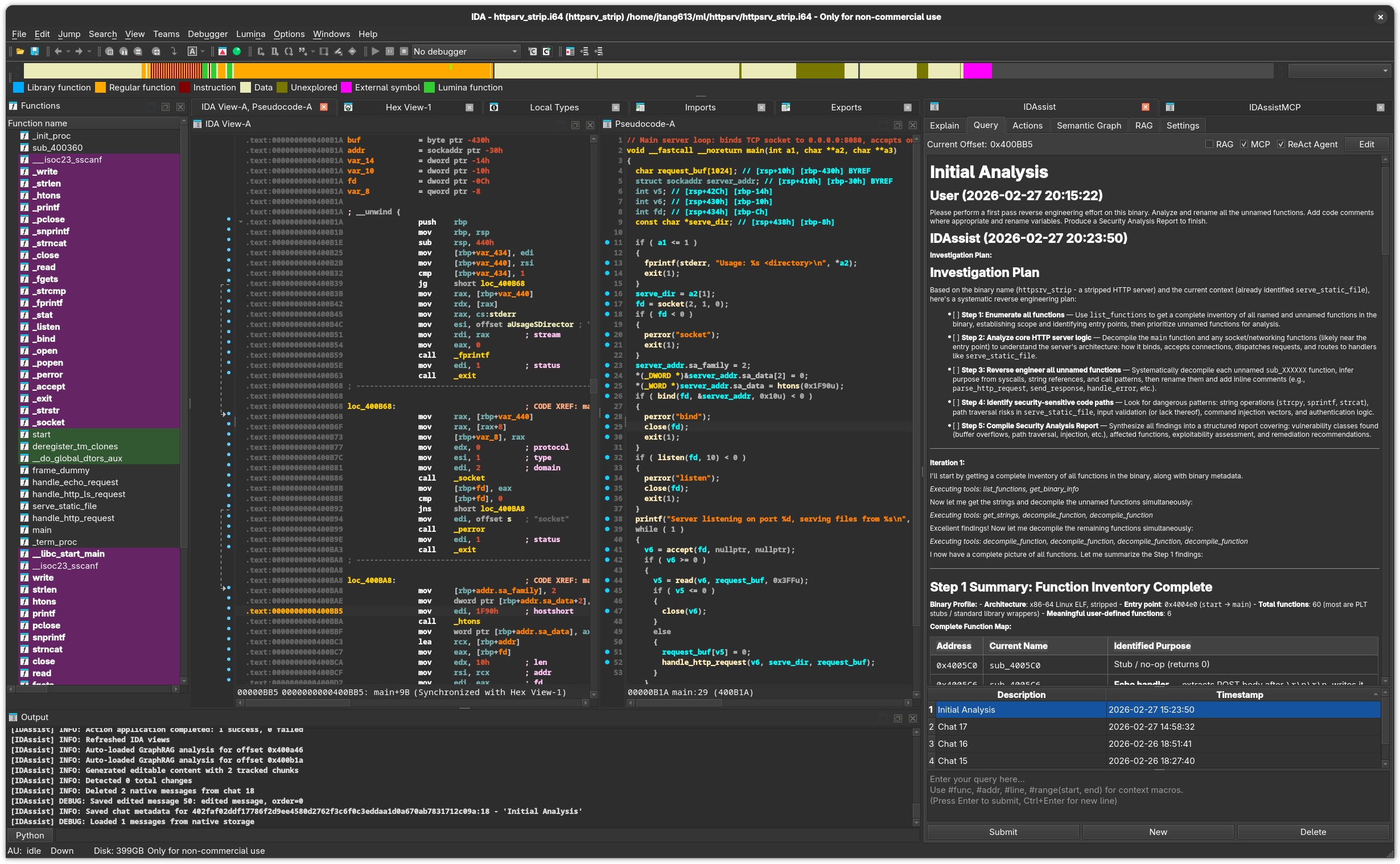

Screenshot

Purpose

The Query tab provides an interactive chat interface for asking questions about the binary. It supports persistent chat history, context macros for injecting code, MCP tool calling, ReAct autonomous agent mode, and RAG-enriched queries.

UI Elements

Top Row

Element	Description
Current Offset	Address of the function under the cursor.
RAG checkbox	Inject relevant RAG document snippets into the query context.
MCP checkbox	Allow the LLM to invoke MCP tools during response generation.
ReAct Agent checkbox	Enable autonomous multi-round investigation mode.
Edit / Save button	Toggle between read mode and edit mode for conversation history.

Chat Content Area

A StreamingMarkdownBrowser that displays the conversation history and streams LLM responses. Features:

Full conversation displayed with user messages and assistant responses
Incremental streaming of new responses
Auto-scroll follows new content; pauses if you scroll up, resumes when you scroll back to the bottom
RLHF feedback links on each response

Chat History Table

Below the content area, a sortable table lists previous conversations:

Column	Description
Description	Chat title (auto-generated or user-edited). Double-click to rename.
Timestamp	When the chat was created, sorted newest first by default.

Click a row to load that conversation
Multi-select with Ctrl+Click for batch deletion
Double-click the Description cell to rename a chat

Input Area

A text editor for composing queries. Supports:

Input	Action
Enter	Submit the query
Ctrl+Enter	Insert a newline

Placeholder text shows the available context macros.

Button Row

Button	Description
Submit	Send the query to the LLM.
New	Start a new empty conversation.
Delete	Delete the selected conversation(s) from history.

During generation, Submit is replaced by Stop to cancel.

Context Macros

Type these macros anywhere in your query to inject IDA context:

Macro	Expands To
`#func`	Current function's pseudocode (Hex-Rays) or disassembly
`#addr`	Address under the cursor (e.g., `0x401234`)
`#line`	Current disassembly line at the cursor
`#range(start, end)`	Disassembly for the given address range

Macros are expanded by the controller before the query is sent to the LLM. For #func, IDAssist prefers Hex-Rays pseudocode when available and falls back to disassembly.

Examples:

What does this function do? #func

Is there a buffer overflow at #addr?

Explain this instruction: #line

Analyze this code block: #range(0x401000, 0x401100)

MCP Tool Calling

When the MCP checkbox is enabled and your LLM provider supports tool calling, the LLM can invoke MCP tools during response generation. This enables multi-round interactions where the model:

Analyzes your question
Calls tools to gather additional context (disassembly, xrefs, function names)
Incorporates tool results into its reasoning
Returns a comprehensive answer

Tool calls and their results are displayed inline in the conversation.

ReAct Agent Mode

When the ReAct Agent checkbox is enabled, the LLM operates as an autonomous investigation agent:

Plan — Develops an investigation strategy
Investigate — Executes tools to gather information
Reflect — Evaluates findings and decides next steps
Synthesize — Produces a comprehensive answer

The agent continues across multiple reasoning rounds until it has enough information. You can click Stop at any time to halt the investigation and get the current findings.

ReAct mode is most useful for complex questions that require exploring multiple functions, tracing data flows, or understanding relationships across the binary.

Edit Mode

Click Edit to switch the conversation display to a text editor where you can modify the conversation history. Click Save to store changes. This is useful for cleaning up conversations or correcting context before continuing a discussion.

Chat Persistence

Conversations are stored in the analysis database and persist across IDA sessions. Each chat includes:

All user messages and assistant responses
Timestamps
The binary hash (conversations are associated with the binary being analyzed)

IDA-Specific Details

#func macro extracts pseudocode via ida_hexrays.decompile() or falls back to disassembly
#addr reads the current cursor position from ida_kernwin
#line extracts the disassembly line at the cursor
#range extracts disassembly between two addresses using ida_lines
All IDA reads happen on the main thread via execute_on_main_thread()
