Semantic Graph Tab Reference

Purpose

The Semantic Graph tab builds and explores a knowledge graph of the binary's functions, call relationships, data flows, and security characteristics. It provides four sub-views for different exploration modes, plus tools for automated security, network, and community analysis.

Top Controls

Present across all sub-views:

Element	Description
Current	Text field showing the selected function. Type a name or address and click Go to navigate.
Status bar	Shows index statistics: node count, caller/callee counts, flag counts.

Bottom Controls

Button	Description
Reset Graph	Delete all indexed data for this binary.
ReIndex Binary	Run the full indexing pipeline: extract structure, call graph, cross-references.
Semantic Analysis	Generate LLM summaries for all unsummarized functions. Shows a progress bar.
RAG checkbox	Include RAG context during semantic analysis.
MCP checkbox	Allow MCP tool use during semantic analysis.
Force re-analysis checkbox	Re-analyze functions that already have summaries.

Graph Stats display: X nodes | Y edges | Z stale | Last: YYYY-MM-DD HH:MM:SS

Sub-Views

1. List View

A detail panel for the currently selected function with four sections:

Left Column (60%):

Section	Description
Callers	Functions that call the current function. Double-click to navigate.
Callees	Functions called by the current function. Double-click to navigate.
Edges	Table of all edges involving this function, with type filtering.

Edge types: calls, references, calls_vulnerable, taint_flows_to, similar_purpose, network_send, network_recv

Right Column (40%):

Section	Description
Security Flags	Checkboxes for known security flags. Click to toggle.
+ Add Custom Flag	Add a custom security flag to this function.
LLM Summary	The LLM-generated explanation of this function.
Edit / Save	Toggle between read and edit mode for the summary.

Known Security Flags:

• BUFFER_OVERFLOW_RISK
• COMMAND_INJECTION_RISK
• FORMAT_STRING_RISK
• USE_AFTER_FREE_RISK
• PATH_TRAVERSAL_RISK
• INTEGER_OVERFLOW_RISK
• NULL_DEREF_RISK
• MEMORY_LEAK_RISK
• RACE_CONDITION_RISK
• HANDLES_USER_INPUT
• PARSES_NETWORK_DATA
• CRYPTO_OPERATION
• AUTHENTICATION

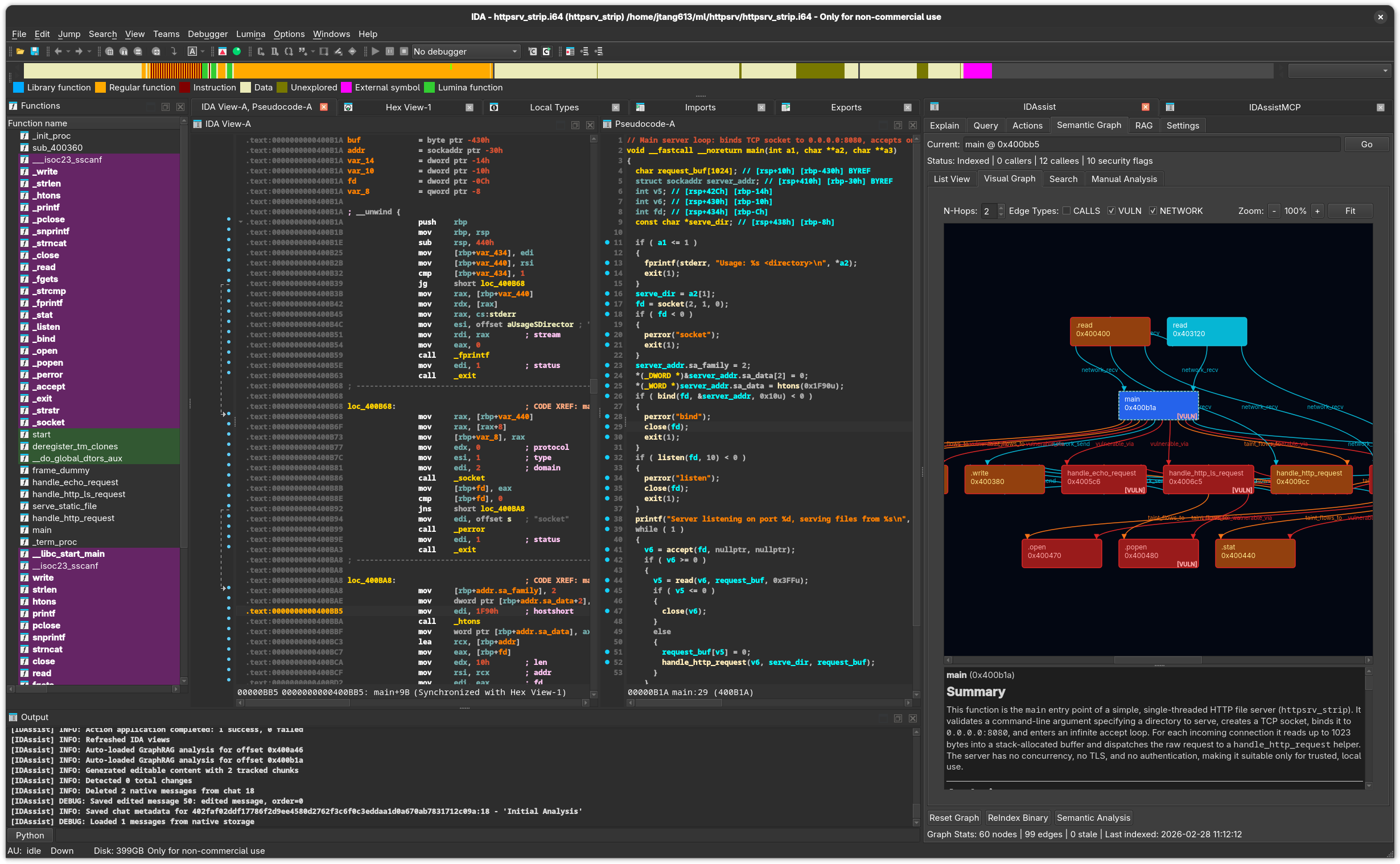

2. Visual Graph

An interactive QGraphicsView displaying function nodes and relationship edges.

Controls:

Control	Description
N-Hops spinner	Expansion depth (1–5 hops from the center function).
CALLS checkbox	Show/hide call edges.
VULN checkbox	Show/hide vulnerability-related edges.
NETWORK checkbox	Show/hide network flow edges.
Zoom buttons	Zoom in (-), reset (100%), zoom out (+), fit to view (Fit).

Visual Theme:

Element	Color	Meaning
Background	#1f2123	Dark theme
Normal node	#3a3f44	Standard function
Center node	#2ea8b3	Currently selected function
Vulnerable node	#7a2b2b	Function with security flags
Call edges	#58a6ff	Function calls
Reference edges	#7a7f87	Data/code references
Vulnerability edges	#ff5c5c	Vulnerability-related relationships

• Uses Graphviz (dot command) for layout when available, falls back to BFS layout
• Curved edges with arrowheads
• Double-click any node to navigate to that function in IDA
• Summary panel below shows the selected node's function name, address, and LLM summary

3. Search View

Query the knowledge graph with seven search types:

Query Type	Description
Semantic Search	Find functions by natural-language description.
Get Analysis	Retrieve the stored analysis for a specific function.
Similar Functions	Find functions with similar behavior or structure.
Call Context	Explore callers and callees at a given depth.
Security Analysis	Find functions matching security patterns.
Module Summary	Summarize a group of related functions.
Activity Analysis	Analyze function activity patterns (network, file I/O).

Parameters:

Field	Description
Query	Search text or natural-language description.
Address	Target function address. Use Current Address checkbox auto-fills.
Limit	Maximum results (1–100, default 20).
Depth	Call graph depth (1–5, default 1).
Direction	Call graph direction: both, callers, or callees.
Scope	Analysis scope: function or binary.

Results Table: #, Function, Address, Score, Summary

Click a result row to see full details in the panel below. Click Go To to navigate to that address in IDA.

4. Manual Analysis Panel

Run targeted analyses with individual buttons and progress indicators:

Button	Description
Security Analysis	Detect vulnerability patterns and security-relevant API calls.
Network Flow	Trace network operations across the call graph.
Community Detection	Group related functions into logical modules.
Refresh Names	Update graph node labels to match current IDB names.

Each button shows a progress indicator during execution.

Analysis Pipeline

The full analysis pipeline (triggered by ReIndex Binary + Semantic Analysis) runs these phases:

1. Structure extraction — Function boundaries, call graph, cross-references
2. Semantic analysis — LLM summaries for each function
3. Security feature extraction — Vulnerability pattern detection
4. Network flow analysis — Network API tracing
5. Taint analysis — Data flow tracking
6. Community detection — Module grouping

IDA-Specific Details

• Functions are indexed via idautils.Functions() which iterates all recognized functions
• Double-clicking a node or search result calls ida_kernwin.jumpto(ea) to navigate
• Function names are read via ida_name.get_name(ea)
• Cross-references use ida_xref for both code and data xrefs
• The IDB hook renamed() notifies the graph when functions are renamed, keeping labels in sync
