Settings Tab Reference

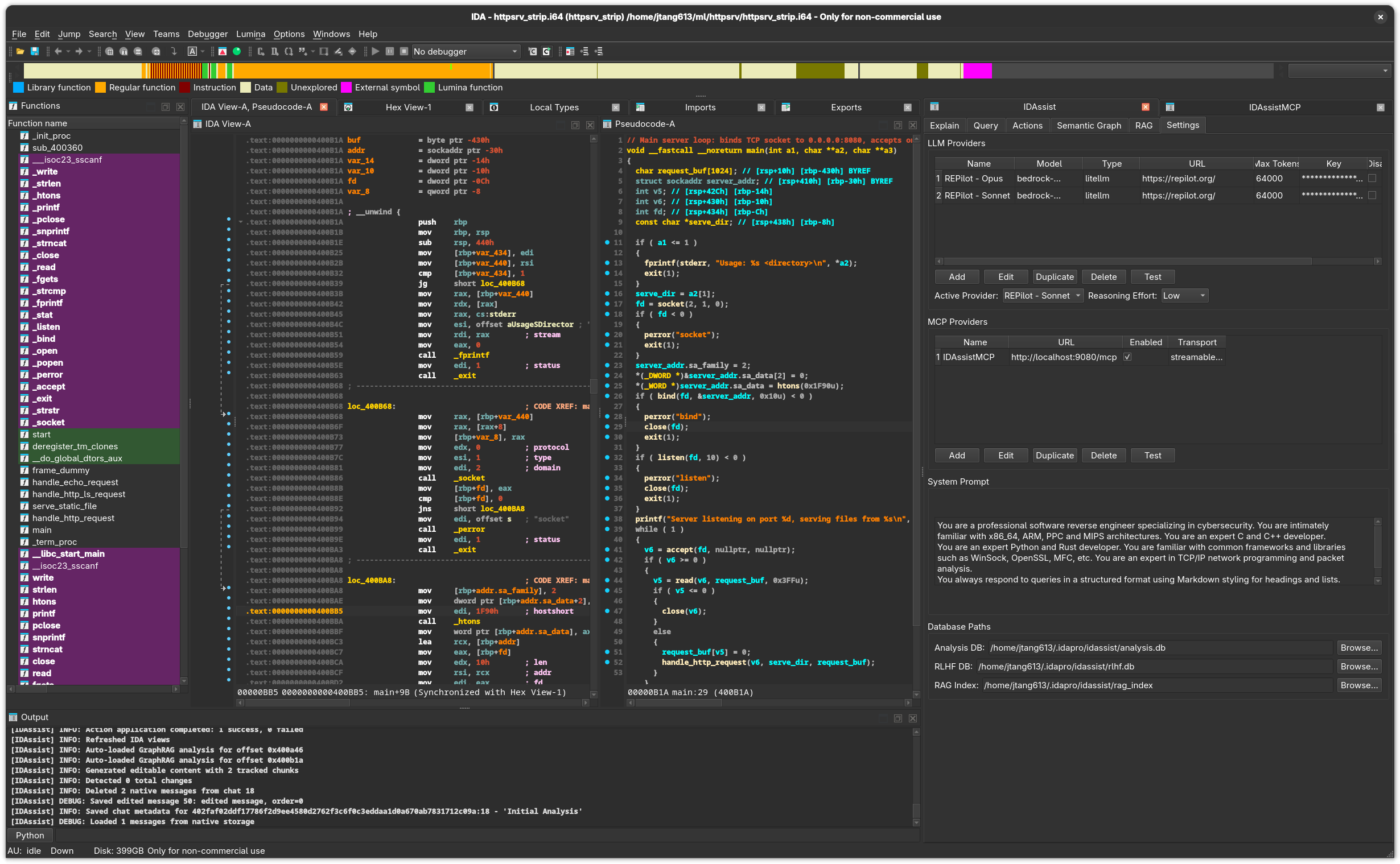

Screenshot

Purpose

The Settings tab manages LLM providers, MCP providers, SymGraph integration, the system prompt, and database paths. It is the central configuration hub for IDAssist.

LLM Providers

Provider Table

Lists all configured LLM providers:

Column	Description
Name	Unique provider name (e.g., "Claude", "GPT-5.3").
Model	Model identifier (e.g., `claude-sonnet-4-6`, `gpt-5.3-codex`).
Type	Provider type (see table below).
URL	API endpoint URL.
Max Tokens	Maximum tokens for requests.
TLS	Whether TLS verification is enabled.

Provider Management Buttons

Button	Description
Add	Open a dialog to configure a new LLM provider.
Edit	Modify the selected provider's settings.
Delete	Remove the selected provider.
Test	Send a test request to verify connectivity and credentials.

Active Provider

A dropdown selector to choose which LLM provider is used for all Explain, Query, and Actions operations. Only one provider is active at a time.

Reasoning Effort

Controls the extended thinking budget for supported models:

Level	Token Budget	Description
None	Disabled	No extended thinking. Standard response generation.
Low	~2K tokens	Light reasoning for straightforward tasks.
Medium	~10K tokens	Moderate reasoning for complex analysis.
High	~25K tokens	Deep reasoning for the most complex tasks.

Extended thinking is supported by Anthropic models (Claude) and OpenAI reasoning models (o1).

Provider Types

Type	Auth Method	Streaming	Tool Calling	Notes
`anthropic_platform`	API Key	Yes	Yes	Direct Anthropic API
`anthropic_oauth`	OAuth (browser)	Yes	Yes	Browser-based auth flow
`anthropic_claude_cli`	Local CLI	Yes	Yes	Uses `claude` CLI binary
`openai_platform`	API Key	Yes	Yes	Direct OpenAI API
`openai_oauth`	OAuth (browser)	Yes	Yes	Browser-based auth flow
`ollama`	None (local)	Yes	Model-dependent	Self-hosted, no API key needed
`litellm`	Proxy URL	Yes	Provider-dependent	Multi-provider proxy

Provider Configuration Fields

When adding or editing a provider:

Field	Description
Name	Unique identifier for this provider.
Type	Provider type from the table above.
Model	Model ID (e.g., `claude-sonnet-4-6`, `gpt-4o`, `qwen2.5-coder:32b`).
URL	API endpoint. Auto-filled for known provider types.
API Key	Authentication credential. Encrypted in the settings database.
Max Tokens	Maximum tokens per request.
Disable TLS	Skip TLS certificate verification (for self-signed certs or local servers).

MCP Providers

MCP Provider Table

Column	Description
Name	Unique name for the MCP server.
URL	Server endpoint (e.g., `http://localhost:3000`).
Enabled	Whether this MCP server is active.
Transport	Connection type (HTTP/SSE).

MCP Management Buttons

Button	Description
Add	Configure a new MCP server connection.
Edit	Modify the selected MCP server's settings.
Delete	Remove the selected MCP server.
Test	Verify connectivity to the MCP server.

System Prompt

A large text area for customizing the system prompt sent to the LLM with every request. The default prompt instructs the model to behave as a binary analysis assistant. Modify this to:

Focus the LLM on specific domains (malware, firmware, crypto)
Set output formatting preferences
Add standing instructions (always mention CVEs, always use C pseudocode, etc.)

Database Paths

Configure where IDAssist stores its local data:

Field	Default Path	Purpose
Analysis DB	`~/.idapro/idassist/analysis.db`	Function summaries, security flags, graph data.
RLHF DB	`~/.idapro/idassist/rlhf.db`	User feedback on LLM responses.
RAG Index	`~/.idapro/idassist/rag_index/`	Whoosh search index for uploaded documents.

Each field has a Browse button to select a custom path. The settings themselves are stored in ~/.idapro/idassist/settings.db.
